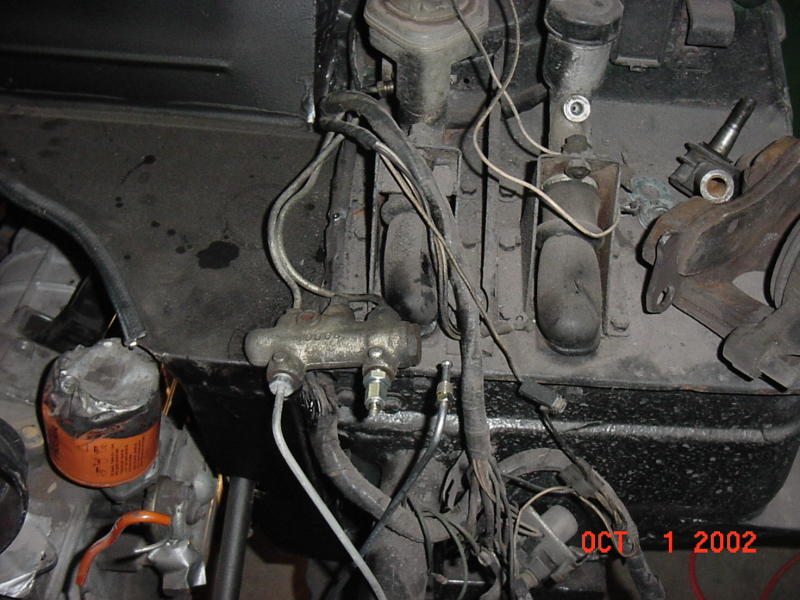

The concern here was whether the Triumph master cylinder could push enough fluids to operate the Mazda and Mercury brake calipers.  These are anemic and ugly.


The answer is a Wilwood pedal set with Tilton master cylinders.  Separate master cylinders for front and rear brakes are bias adjustable from inside the cockpit.

$100 bought me the front bakes/rotors, knuckle and axles from a  wrecked 1993 RX7.  These provided lightweight 4 piston calipers and wheel speed sensors.

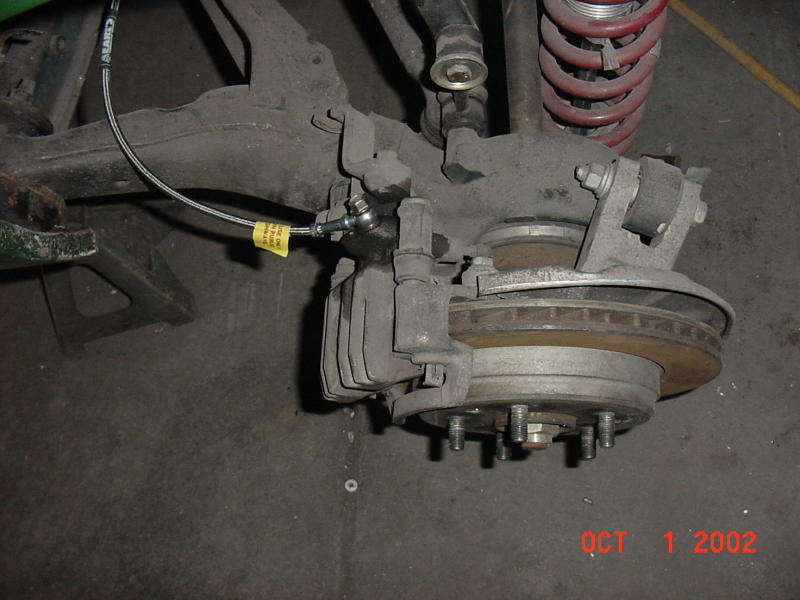

Rear 1987 RX7 brakes with stainless brake lines.

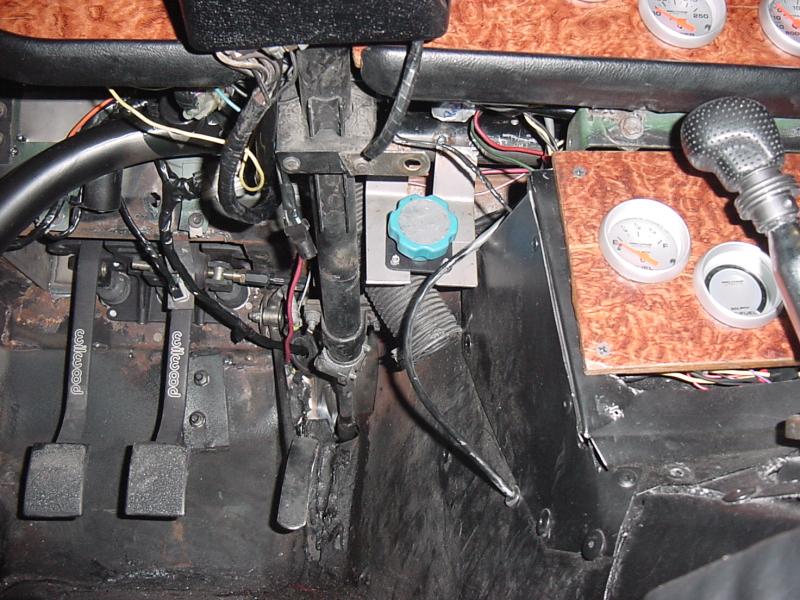

The new Wilwood pedal set and biasing control.
