Fuel System

Click On A Picture To Enlarge

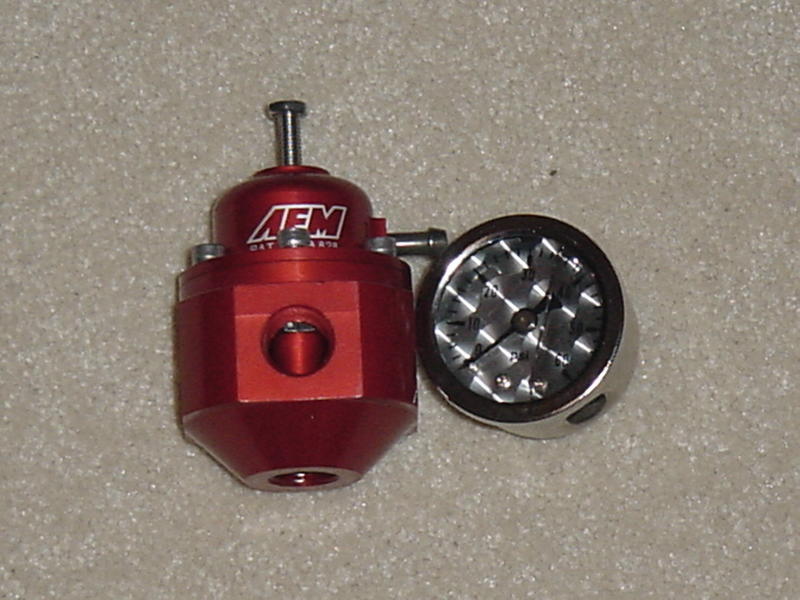

AEM adjustable fuel pressure regulator and fuel pressure guage.

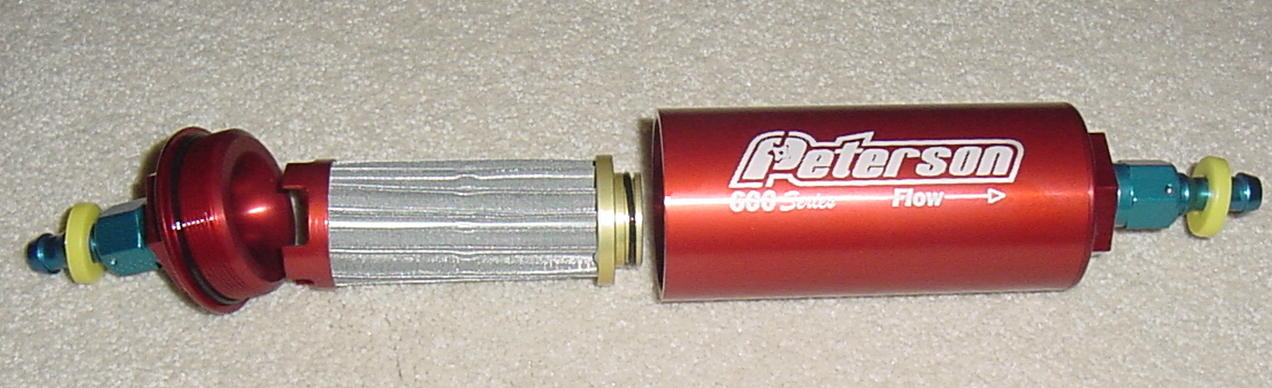

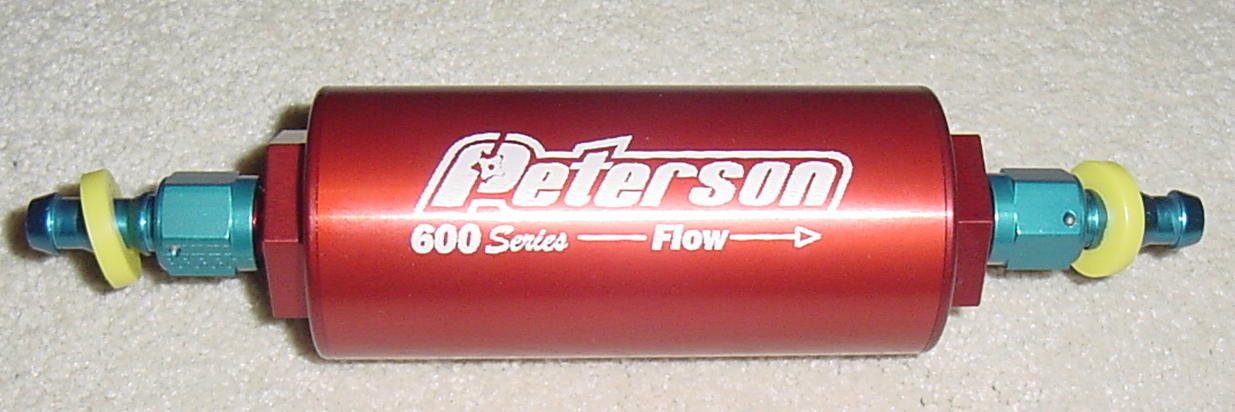

Fuel filter by Peterson Fluids, Inc.

The next fuel system upgrade will be bending hard aluminum pipes the length of the chassis to replace the 3/8" steel braided fuel lines.

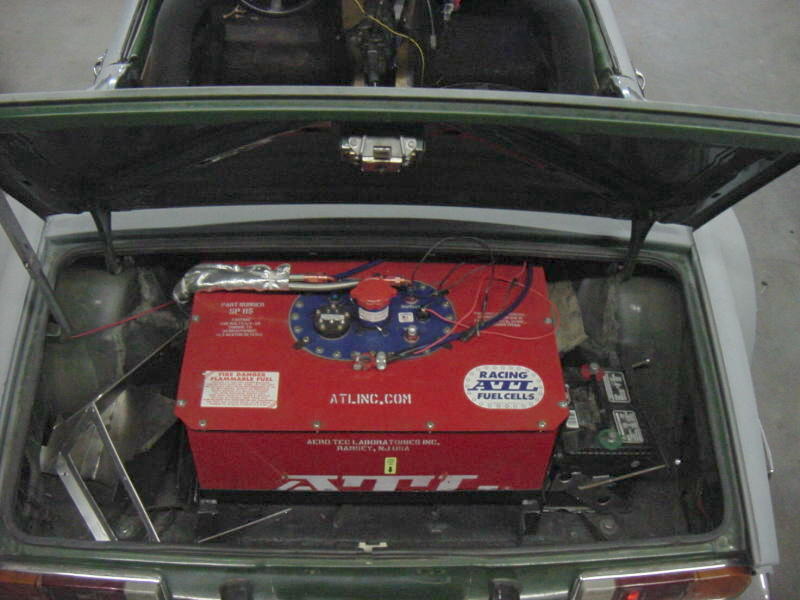

  An ATL 15 gallon fuel cell with sender gauge, high flow Walbro pump, foam core and internal surge tank the lines are -10 AN.   I may want to find a 'vintage fuel cell' design and position it closer to mid mass.  The battery will be moved to the rear right corner for weight distribution.

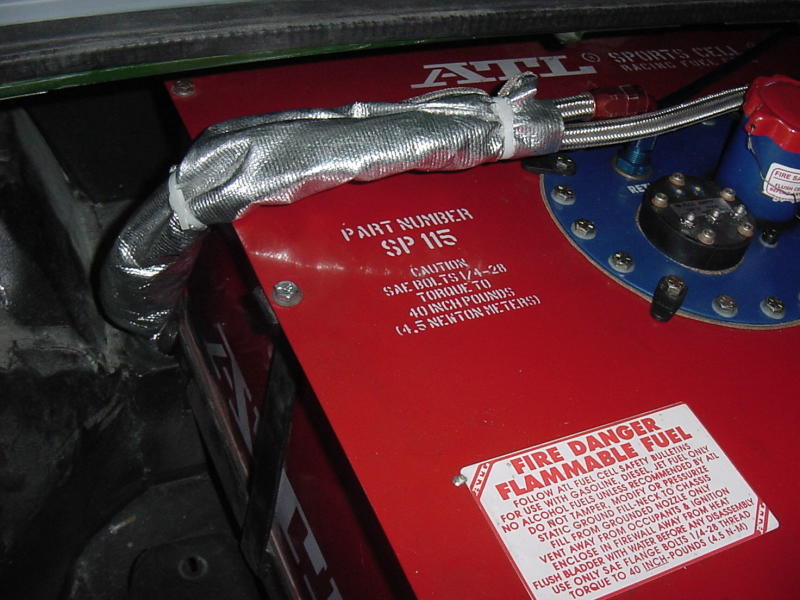

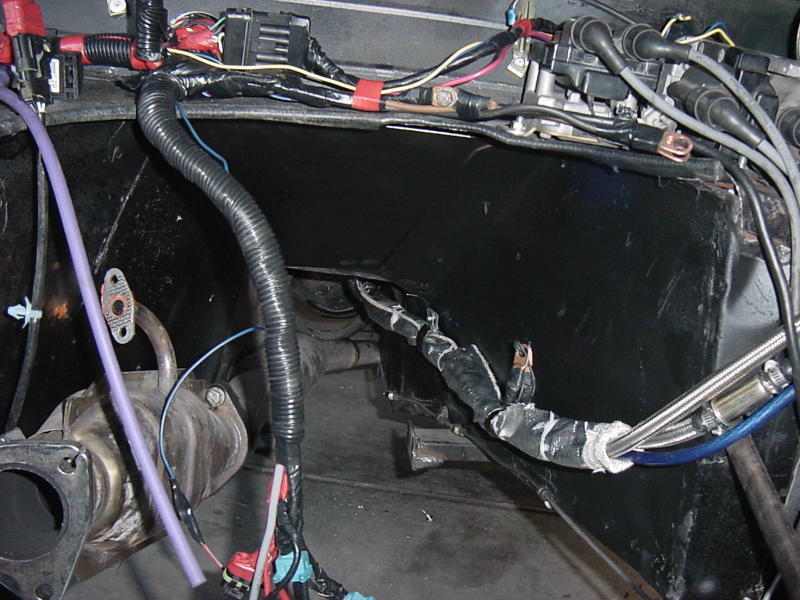

  A Thermotech sleeve will protect the fuel lines since they are so close to the exhaust.
